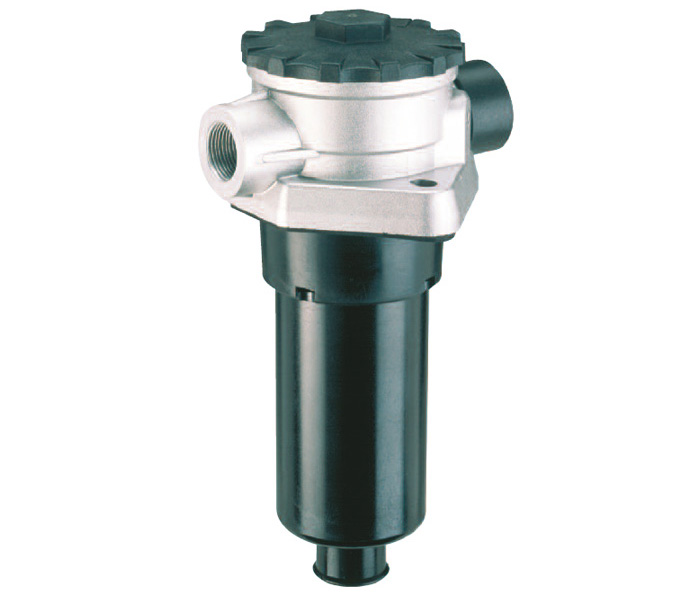

FIOMTP – Return Line Filters up to 150 L/min
Series OMTP – return line filters, their range has two sizes with nominal flows up to 150 L/min.
Main Technical Data:
- Ports Sizes: 1/2″ – 3/4″ BSP
- Micron Rating: 10 / 25 microns
- Flow Rate: 35 – 150 l/min
- Max Pressure: 10 bar
- Bypass Setting: 1.5 bar
- Air breather: 10μm and 40μm
Product Codes of OMTP Filters:
| Complete Filter | Max. Flow (L/min.) | Filration (um.) | Port Sizes | Replacement Elements |
|---|---|---|---|---|
| OMTP020C10N | 35 | 10 | 1/2" BSP | OMTPR020C10N |
| OMTP020C25N | 40 | 25 | 1/2" BSP | OMTPR020C25N |
| OMTP101C10N | 60 | 10 | 3/4" BSP | OMTPR101C10N |
| OMTP101C25N | 60 | 25 | 3/4" BSP | OMTPR101C25N |
| OMTP102C10N | 80 | 10 | 3/4" BSP | OMTPR102C10N |
| OMTP102C25N | 80 | 25 | 3/4" BSP | OMTPR102C25N |
| OMTP103C10N | 100 | 10 | 3/4" BSP | OMTPR103C10N |
| OMTP103C25N | 100 | 25 | 3/4" BSP | OMTPR103C25N |
