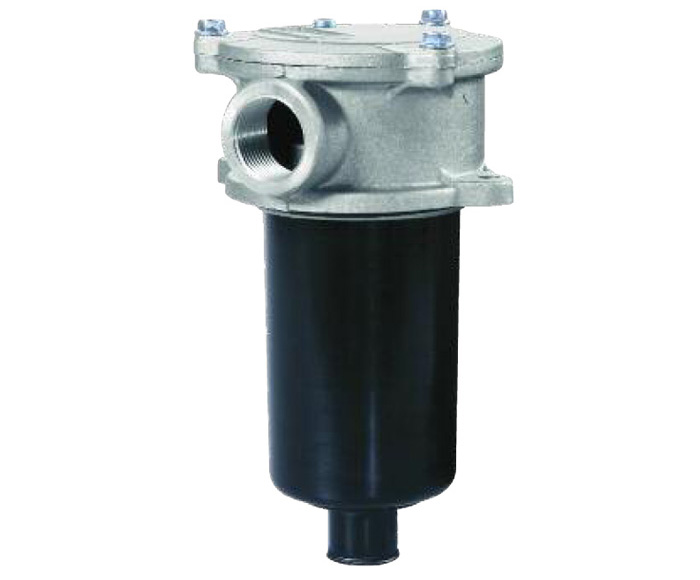

FIOMTF – Return Line Filters up to 500 L/min
Series OMTF – return line filters, the range includes four different sizes with nominal flow rates up to 500 L/min.
Main Technical Data:
- Ports Sizes: 1/2″ – 2″ BSP
- Micron Rating: 10 / 25 microns
- Flow Rate: 40 – 500 l/min
- Max Pressure: 8 bar
- Bypass Setting: 1.7 bar
Product Codes of OMTF Filters:
| Complete Filter | Max. Flow (L/min.) | Filration (um.) | Port Sizes | Replacement Elements |
|---|---|---|---|---|
| OMTF091C10NA | 40 | 10 | 1/2" BSP | CR091C10R |
| OMTF091C25NA | 40 | 25 | 1/2" BSP | CR091C25R |
| OMTF111C10NA1 | 81 | 10 | 3/4" BSP | CR111C10R |
| OMTF111C25NA1 | 81 | 25 | 3/4" BSP | CR111C25R |
| OMTF112C10NA2 | 100 | 10 | 1" BSP | CR112C10R |
| OMTF112C25NA2 | 100 | 25 | 1" BSP | CR112C25R |
| OMTF171C10NA1 | 214 | 10 | 1 1/4" BSP | CR171C10R |
| OMTF171C25NA1 | 214 | 25 | 1 1/4" BSP | CR171C25R |
| OMTF221C10NA1 | 276 | 10 | 1 1/2" BSP | CR221C10R |
| OMTF221C25NA1 | 300 | 25 | 1 1/2" BSP | CR221C25R |
| OMTF222C10NA1 | 319 | 10 | 1 1/4" BSP | CR222C10R |
| OMTF222C25NA1 | 350 | 25 | 1 1/4" BSP | CR222C25R |
| OMTF223C10NA2 | 319 | 10 | 2" BSP | CR223C10R |
| OMTF223C25NA2 | 350 | 25 | 2" BSP | CR223C25R |
| OMTF224C10NA2 | 380 | 10 | 2" BSP | CR224C10R |
| OMTF224C25NA2 | 500 | 25 | 2" BSP | CR224C25R |
